Athena offers the most complete range of fork oil seal kits on the market. Sourced from the world's leading seal manufacturers, the quality of Athena oil seals meets or exceeds OEM quality. In some cases there are several different seal designs for a given size. If you can't see your bike listed below, contact us for help - please don't just order seals by size.

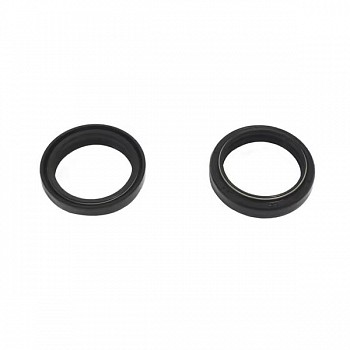

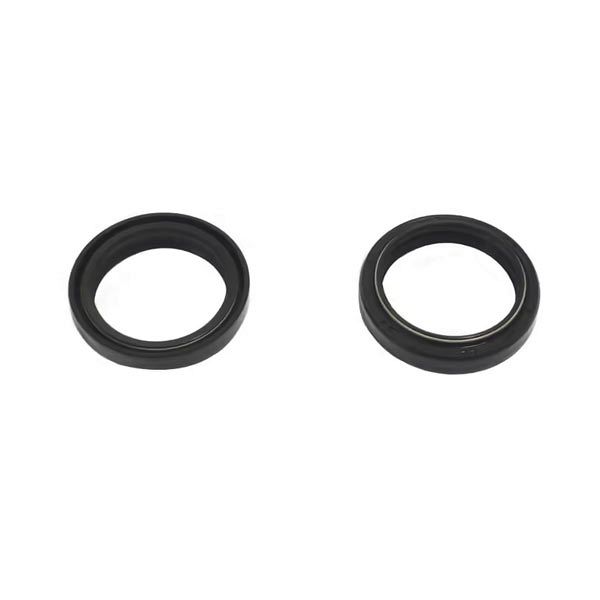

This 455166 kit is composed of two fork oil seals with exterior part in rubber and double lip.
- Internal seal / fork diameter 41 mm
- Oil seal external diameter 53 mm
- Oil seal height 10.5 mm
- Oil seal structure Double seal lip
Compatible with:
- APRILIA SRV 850 cc 2012/2014
- GILERA GP 800 cc 2008/2010
- GILERA NEXUS 500 cc 2003/2009
- GILERA NEXUS EU3 500 cc 2009/2011
- GILERA NEXUS SP EURO 3 500 cc 2003/2009
- HONDA VT C2 SHADOW SABRE 1100 cc 2003/2006
- KAWASAKI EN A/B/C VULCAN LTD 500 cc 2003
- KAWASAKI ER-6F ABS 650 cc 2006/2016
- KAWASAKI ER-6N ABS 650 cc 2006/2016
- KAWASAKI GTR 1000 cc 2003
- KAWASAKI NINJA R USA 650 cc 2006/2012
- KAWASAKI VULCAN S 650 cc 2015/2019
- KAWASAKI Z ABS 800 cc 2013/2016
- KAWASAKI ZR-7 F1-F3/S H1 750 cc 1999/2003
- KAWASAKI Z S/R 750 cc 2004/2012
- PIAGGIO BEVERLY 4T 400 cc 2006/2007
- PIAGGIO BEVERLY 4T 500 cc 2004/2006
- PIAGGIO BEVERLY 4T CRUISER 500 cc 2007/2012
- PIAGGIO BEVERLY 4T TOURER 400 cc 2008/2010
- SUZUKI AN BURGMAN 400 cc 2007/2016
- SUZUKI AN BURGMAN 400 cc / 650 cc 2018
- SUZUKI AN BURGMAN 650 cc 2003/2016
- SUZUKI GSF BANDIT / S 650 cc 2007/2012
- SUZUKI GSR 750 cc 2011/2013
- SUZUKI GSX F 650 cc 2008/2012
- SUZUKI VZ INTRUDER 800 cc 2005/2011
- YAMAHA BOLT 950 cc 2014/2015
- YAMAHA FJ 09 850 cc 2015
- YAMAHA FZS FAZER 600 cc 2002/2003
- YAMAHA MT-07 700 cc 2014/2019
- YAMAHA MT-09 900 cc 2014/2019
- YAMAHA TRACER 7 700 cc 2016/2018
- YAMAHA WR R 125 cc 2009/2014
- YAMAHA XP T-MAX 530 cc 2015/2019
- YAMAHA XVS A MIDNIGHT STAR 950 cc 2009/2015
- YAMAHA XVS DRAG STAR 650 cc 1998/2006
- YAMAHA XVS DRAG STAR / A CLASSIC 1100 cc 2000/2006
- YAMAHA XVS STAR CLASSIC / CUSTOM / SILVERADO 650 cc 2006/2015
- YAMAHA XVS V STAR / V STAR TOURER 1300 cc 2007/2012
- YAMAHA XV WARRIOR 1700 cc 2003/2010
- YAMAHA YP MAJESTY /ABS 400 cc 2004/2013
- YAMAHA YZF R1 1000 cc 1998/2001
- YAMAHA YZF R46 600 cc 2005
- YAMAHA YZF-R6 600 cc 2016
OEM Codes:
- GILERA 599267
- HONDA 51490MCKA01
- KAWASAKI 920491494 / 920490073
- PIAGGIO 599267
- SUZUKI 5115314F00000 / 5115310G50000
- YAMAHA 4EB231450100
