Dell'Orto Spares - Other

Name: Dell'Orto Spares - Other
Brand: Dell'Orto

From $5.90

Where to buy

We carry a wide range of parts for common Dell'Orto carburettors.

The downloads/resource section below includes exploded parts diagrams for each type of carburettor

Options
Downloads

Code	Description	RRP	Availability
DE 9908	SCREW - 0799-27-908	$9.90	In stock	Enquire now
DE 9619	CHOKE FLIP PHM THREADED	$49.00	In stock	Enquire now
DE 9596	CLIP NEEDLE PHSB	$3.90	In stock	Enquire now
DE 9501-60	CHOKE JET #60 PHBG KTM 50SX	$16.90	In stock	Enquire now
DE 9331	ADJUSTER PHF	$19.90	In stock	Enquire now

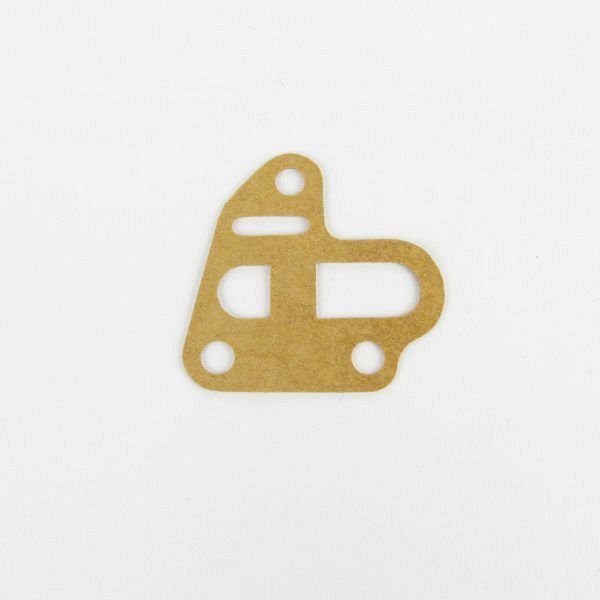

DE 9278	GASKET PUMP DIAPHRAGM PHM PHF	$1.90	In stock	Enquire now
DE 8932-37	SCREW ADJUSTER CABLE	$9.90	In stock	Enquire now
DE 8931-37	SCREW ADJUSTER CABLE	$9.90	In stock	Enquire now
DE 8899	TOPP CABLE GUIDE 45 DEG.PMF PHM - NLA	$24.90	In stock	Enquire now
DE 8888	CHOKE GASKET BODY PHM	$1.90	In stock	Enquire now
DE 8887	CHOKE BODY PHM	$79.00	In stock	Enquire now
DE 8795	MANIFOLD VERTICAL	POA	Not in stock	Enquire now
DE 8785	MANIFOLD HORIZONTAL	POA	Not in stock	Enquire now
DE 8711	SCREW - ALT 0769-27-711	POA	Not in stock	Enquire now
DE 8679	SCREW	$1.90	In stock	Enquire now
DE 8633	'O' RING CARB TOP PHM	$1.90	In stock	Enquire now
DE 8599	DIAPHRAGM ADJ LOCK NUT PHF PHM	$0.90	In stock	Enquire now
DE 8598	O RINGS	$0.90	In stock	Enquire now
DE 8596	PLASTIC REDUCER DIA. 48 - DIA. 45 mm	$4.90	In stock	Enquire now
DE 8558	ONE WAY AIR VALVE PHM PHF	$6.90	In stock	Enquire now
DE 8557	AIR VALVE PHF PHM	$44.90	In stock	Enquire now
DE 8555	PUMPER DIAPHRAGM PHF/PHM	$89.00	In stock	Enquire now
DE 8542	SCREW CARB TOP	$2.90	In stock	Enquire now
DE 8539	DIAPHRAGM ADJ SCREW PHM PHF	$1.90	In stock	Enquire now
DE 8535	PUMP ARM PIN - METAL TOP PHF/PHM	POA	Not in stock	Enquire now
DE 8534	LONG PLASTIC AIR HORN PHF32-36	$29.90	In stock	Enquire now
DE 8533	O RING CARB TOP PHF	$0.90	In stock	Enquire now
DE 8527	CLAMP PHF DIA. 52 mm	$12.90	In stock	Enquire now

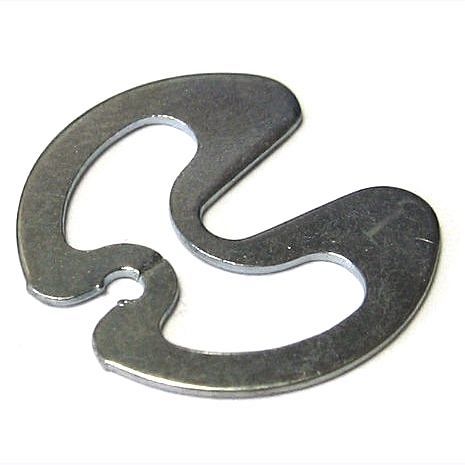

DE 8525	NEEDLE CLIP PHM PHF	$5.90	In stock	Enquire now
DE 8522	PUMP LEVER ARM PHF	$2.90	In stock	Enquire now
DE 8519	FILTER	$13.90	In stock	Enquire now
DE 8428	ACCELERATOR PUMP BODY SCREW PHM/PHF	$1.49	In stock	Enquire now
DE 8426	PUMP LEVER ARM PHM	$3.99	In stock	Enquire now
DE 8295	HOLDER CHOKE CABLE	$16.90	In stock	Enquire now
DE 8293	CHOKE FLIP PHF / PHBH or PHBL 41mm REACH	$69.00	In stock	Enquire now
DE 8260	MIXTURE ADJ SCREW WASHER	$2.90	In stock	Enquire now
DE 8222	RUBBER COVER - CHOKE PHF	$3.90	In stock	Enquire now
DE 8128	CLAMP BOLT NUT	$8.90	In stock	Enquire now
DE 8127	CLAMP BOLT PHF PHM	$4.90	In stock	Enquire now
DE 8012	TUBE	POA	Not in stock	Enquire now
DE 8007	MANIFOLD	POA	Not in stock	Enquire now
DE 7745	DIAPHRAGM & CHOKE RETAINING SCREW	$1.90	In stock	Enquire now
DE 7540	O-RING THROTTLE STOP / IDLE JET HOLDER PHB_ / PHF / PHM	$0.90	In stock	Enquire now
DE 7513	SCREW	$0.90	In stock	Enquire now
DE 7449	MIXTURE ADJUSTMENT SCREW PHBE/PHB/PHBH/PHBL/PHF/PHM/VHB 33mm	$11.90	In stock	Enquire now
DE 6423	NUT	$0.90	In stock	Enquire now
DE 6416	BUTTERFLY SCREW	$2.90	In stock	Enquire now
DE 6173	O RING	$0.90	In stock	Enquire now
DE 53073	CABLE GUIDE KIT 32 DEGREE	$24.90	In stock	Enquire now
DE 53041	TICKLER ASSY PHM	$19.90	In stock	Enquire now
DE 53039	CARB TOP CABLE GUIDE 40 DEGREE	$24.90	In stock	Enquire now
DE 53038	CARB TOP CABLE GUIDE 50 DEGREE	$24.90	In stock	Enquire now
DE 53037	CARB TOP CABLE GUIDE 70 DEGREE	$24.90	In stock	Enquire now
DE 53036	CARB TOP CABLE GUIDE 90 DEGREE	$24.90	In stock	Enquire now
DE 53034	ACCELERATOR PUMP HOUSING KIT PHM/PHF	$189.00	In stock	Enquire now
DE 53028	SCREW KIT THROTTLE SLIDE	$19.90	In stock	Enquire now
DE 53022	MIXTURE SCREW KIT PHBE	$14.90	In stock	Enquire now
DE 53008	KIT CABLE CHOKE PHSB	$39.90	In stock	Enquire now
DE 53007	KIT CABLE CHOKE PHM	$44.90	In stock	Enquire now
DE 53006	KIT CABLE CHOKE PHF	$44.90	In stock	Enquire now
DE 53003	CHOKE KIT CABLE PHBE (LATER TYPE ONLY) / PHBH / PHBL	$19.90	In stock	Enquire now
DE 4961	113mm THROTTLE CABLE FOR 40mm CARB	POA	Not in stock	Enquire now
DE 4713	WASHER 5 x 8 x 0.8mm FIBRE	$0.90	In stock	Enquire now
DE 4650	WASHER 5 x 8 x 0.9mm	$0.90	In stock	Enquire now
DE 4052	FUEL INLET BANJO SCREW FIBRE WASHER PHF PHM	$0.90	In stock	Enquire now

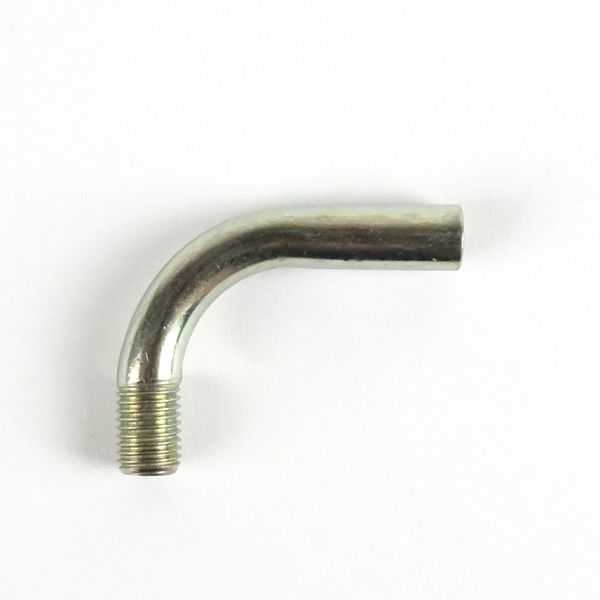

DE 3698	90 DEG. CABLE GUIDE - IN KIT DE 53036	$10.90	In stock	Enquire now
DE 2086	PLUGS	$8.90	In stock	Enquire now
DE 1692	CABLE ADJUSTER LOCK NUT M5x0.75	$0.90	In stock	Enquire now
DE 1691	NUT	$2.90	In stock	Enquire now
DE 1575	SCREWS / CLAMPS KIT	$15.90	In stock	Enquire now
DE 1481	CARB TOP ADJUSTER SCREW M5x0.75 DIA. 6.75mm ID FOR CABLE	$4.90	In stock	Enquire now
DE 1476	RUBBER BOOT - ALT. TO 0101.02.186	$5.90	In stock	Enquire now
DE 1439	CORNETTO	$23.90	In stock	Enquire now
DE 13622-35	CABLE GUIDE 50d.	$24.90	In stock	Enquire now
DE 13578-34	VENTURI 12.5 VHSB	$189.00	In stock	Enquire now
DE 12006	COVER	$4.90	In stock	Enquire now
DE 11879	CABLE GUIDE 70d.	$24.90	In stock	Enquire now
DE 11651	CHOKE HOUSING SPACER PHM	$24.90	In stock	Enquire now
DE 11377	COVER	$5.90	In stock	Enquire now
DE 11164	RUBBER COVER SHORT THROTTLE	$3.90	In stock	Enquire now
DE 11045	CARB TOP PHBE	$8.90	In stock	Enquire now
DE 1104	SCREW CABLE TOP ADJ PHF PHM	$7.90	In stock	Enquire now
DE 11023	FUEL PUMP P 34 PB 2	$119.00	In stock	Enquire now
DE 10931	CARB TOP PHM LARGE THREAD	$11.90	In stock	Enquire now
DE 10924	PUMP ARM PIN FOR PLASTIC TOP PHM/PHF	$4.90	In stock	Enquire now
DE 10923	CARB TOP PHM SMALL THREAD	$11.90	In stock	Enquire now
DE 10922	CARB TOP PHF	$24.90	In stock	Enquire now
DE 10889	CABLE NIPPLE PHSB	$12.90	In stock	Enquire now
DE 10854-35	CABLE GUIDE 50d.	$24.90	In stock	Enquire now
DE 10825	NEEDLE WASHER	$3.90	In stock	Enquire now
DE 1077	SCREW CABLE TOP ADJ PHF PHM	POA	Not in stock	Enquire now
DE 10428	FUEL RETAINER WASHER	$3.90	In stock	Enquire now

Name
Dell'Orto Carburettor Exploded Diagrams (4.46 MB)
Dell'Orto K U Needle Chart (33.97 KB)
