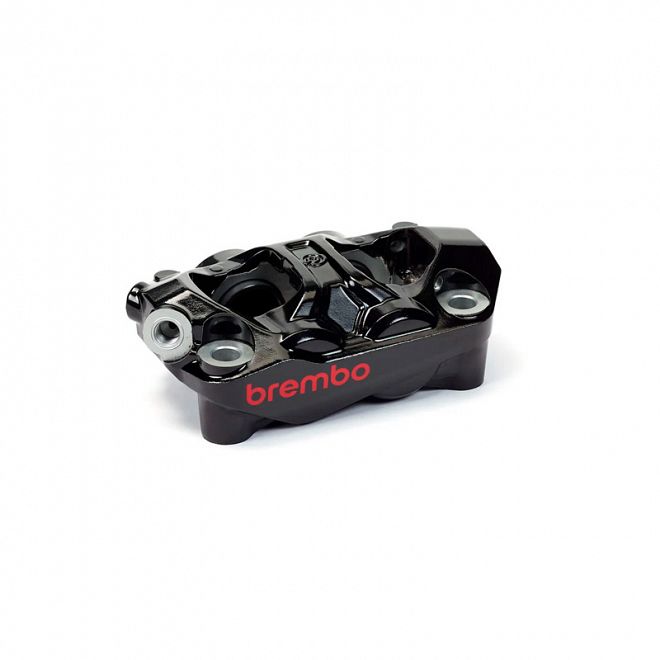

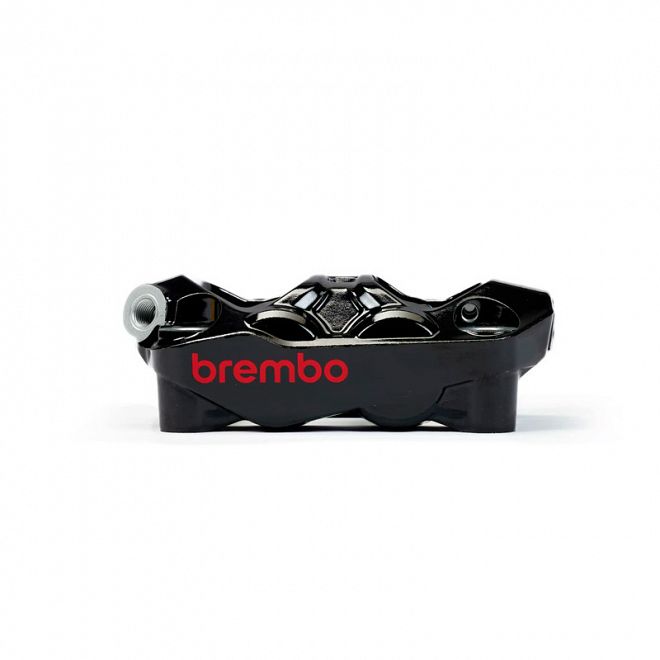

The Brembo Hypure 920E94043 is a lightweight four piston radial brake caliper (left-hand) designed for high performance motorcycles, combining excellent rigidity, precise braking response and distinctive styling.
Hypure’s asymmetrical aluminium body achieves a 10% weight reduction compared with the reference caliper for the same application while retaining high stiffness. Brembo also designed the Hypure with advanced heat transfer capability to help maintain consistent braking performance, together with a patented spring, pad and pin system that minimises residual torque.
Part of Brembo’s Xtra range, this version combines the performance and technology of the Hypure with a more distinctive painted finish. Xtra products are designed for riders who want Brembo quality, reliability and performance together with additional styling and personalisation.
The 920E94043 features a black painted finish, four 30 mm aluminium pistons and 100 mm radial mounting centres. The cast aluminium caliper weighs 900 g without brake pads.

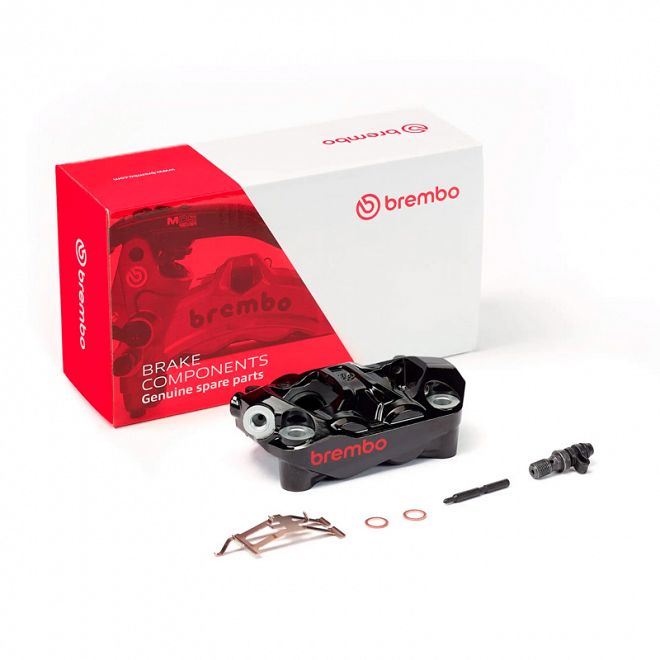

Brake pads are not included. The corresponding right-hand caliper is 920E94044.

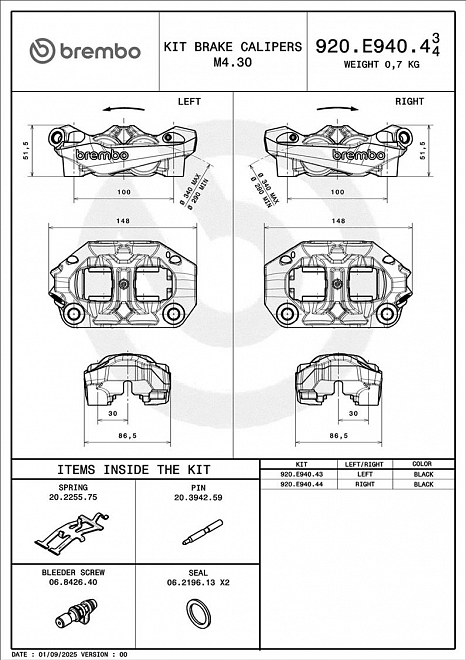

Technical specifications:
- Interaxle Spacing: 100mm
- Number of pistons: 4 pistons
- Surface width: 30-34mm
- Piston diameter: 30mm
- Pads included: No
- Material: Aluminium
- Finish: Black
- Weight: 900g
- Machining: Cast
